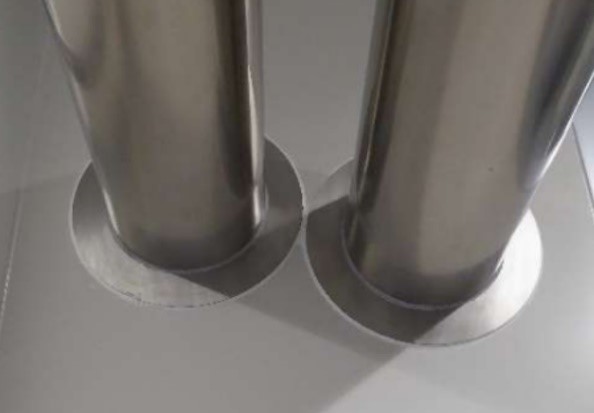

The KCS Cleanseal is and Air tight seal for wall and ceiling penetrations. Ideal to secure an air tight and clean connection for piping, electrics and other penetrations
FEATURES
- Air tight by rubber connection
- Rubber resistant for heat and detergents
- Stainless steel ring (SS 316-L)

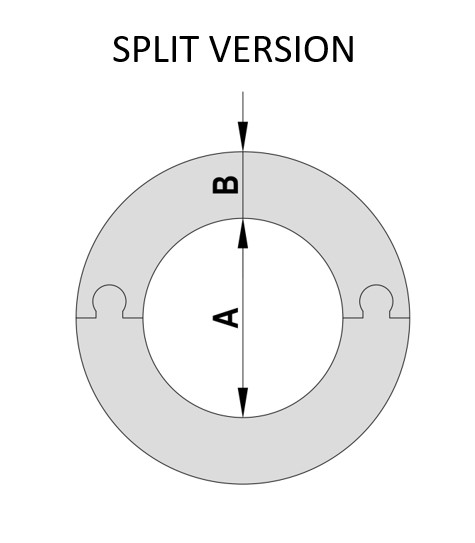

- Split version for existing piping
- Suitable for variable sizes of piping/penetrations from ∅ 5 to 80 mm
SIZES
| ø Cleanseal | ø Penetration |
| Type 1- ø 80mm | ø 5 to 15mm |
| Type 2- ø 100mm | ø 15 to 35mm |
| Type 3- ø 120mm | ø 35 to 55mm |
| Type 1- ø 160mm | ø 55 to 80mm |
OPTIONS
- Split version (for existing piping)
- 4 different sizes available from ∅ 5 to 80 mm
CLEANSEAL DETAILS
